Emergency charger for Macbook Pro. In case you lost the original.
Forgot your MacBook Pro charger? I reverse-engineered the USB-C voltage trick that tricks the laptop into charging from a lab power source.
It happened to me that I got to the office and realized that I left the forgotten charger at home. So after trying for a while I managed to charge my laptop and share what I did. After all, I like the topic of researching charger designs for types of devices, especially cell phones and computers. In a previous article I explained how to make a USB type cell phone charger.
Before I begin I will note that I have relied on experimentation, so everything shown here should be used with great care and at your own risk. I have practically experimented blindly.
Macbook charger provides voltage steps
The first thing is that the Macbook Pro charging procedure (I don't know if it applies to other models) is quite tricky. According to the charger that comes in Mac there are 4 voltages that can be provided: 5V, 9V, 12V and 20V. Obviously I started testing with the lower voltage and it did not charge at all.
The same is also true if you test with the other voltages. The TRICK was to gradually increase voltages: first 5V, then 9V, then 12V and finally 20V. With the last voltage a power of almost 60W is reached, which is very similar to the power that is marked on the source.

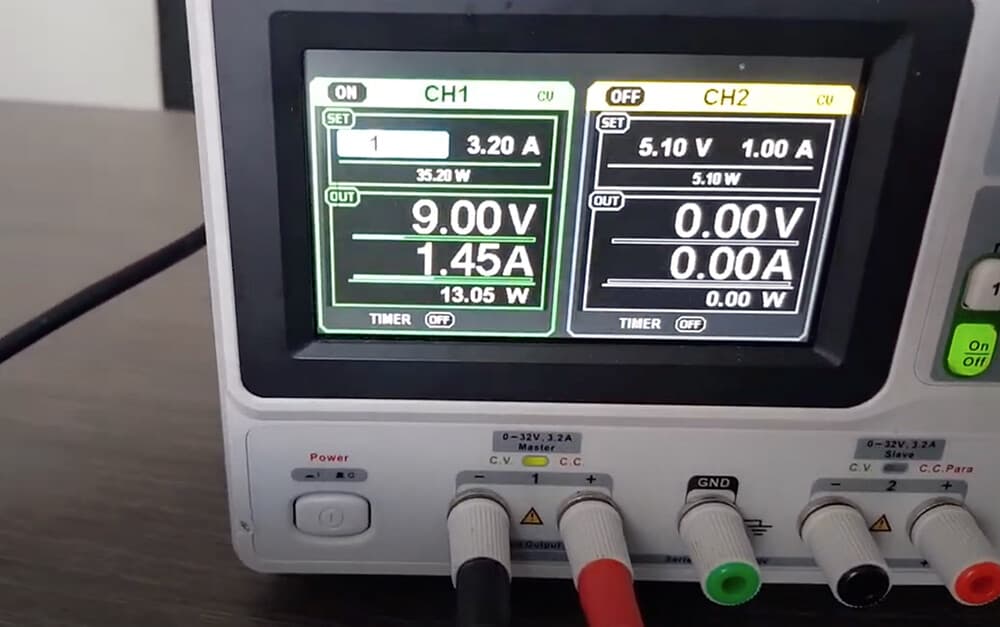

To better explain I used a configurable power source, from the SIGLENT brand, and I increased the voltage to the desired values. I share a video that I made with the details.
Building a compatible charger for Macbook Pro
I am in this task now. The one to build a compatible open-design charger, let's see how I do. I hope to publish more information in the next few days.
Enjoy solving things with electronics? Learn to build a battery-powered phone charger, a USB car charger, and the reverse engineering of a USB charger.
Categories
The books · born from this blog
Atahualpa con su abrigo de pelo de murciélago
y otras 49 historias verdaderas que parecen mentira
Available on Amazon
Tocar madera
Pequeña historia de las supersticiones que el mundo no ha podido soltar
Available on Amazon
100 futuros
Cien escenarios del mundo que viene con la inteligencia artificial
Available on AmazonYou may also like
How to make a USB car charger (car) and how a DC voltage reducer works
When my car charger died, I took it apart to show how to build a USB car charger and how a DC voltage reducer works using the MC34063 chip.
How to Make a Cell Phone Charger for Emergencies?

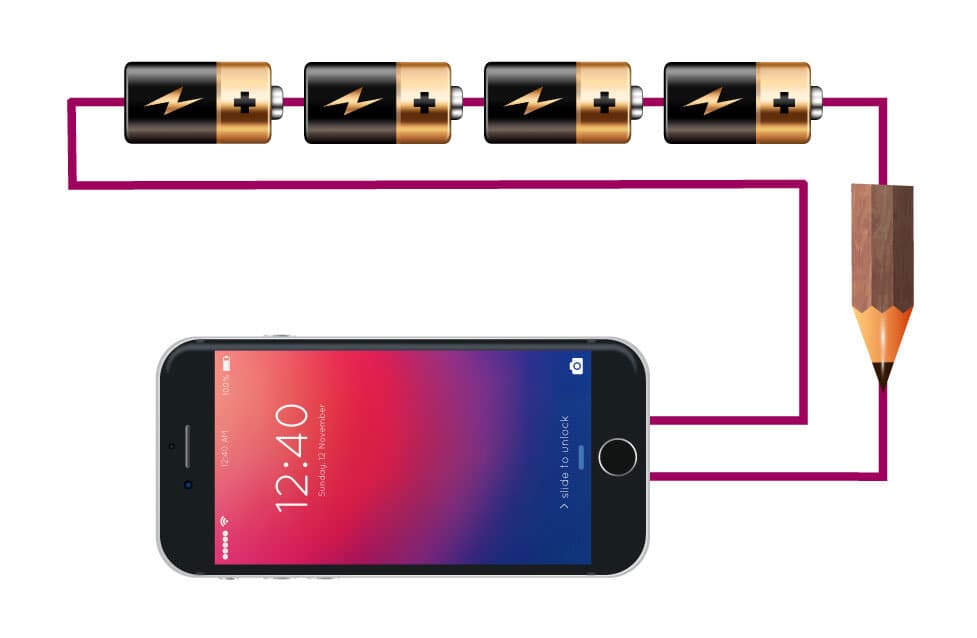

Stuck with a dead phone while camping? Build an emergency charger from 4 AA batteries, a stripped cable and even pencil lead as a resistor.
